Model No: CNG2
CNG Cylinder
Quantity :

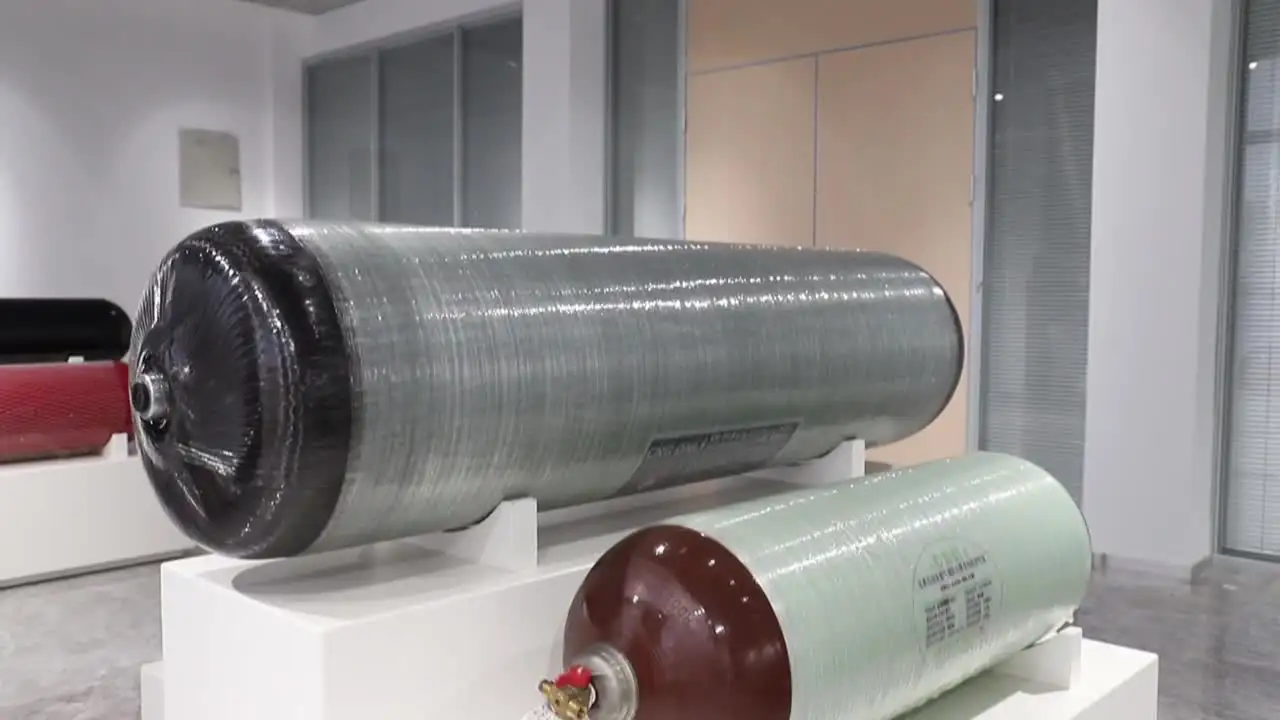

High-Pressure CNG Cylinder
Product Overview
Ourhigh-pressure CNG cylinder is engineered to provide safe and efficient storage for compressed natural gas. Designed for automotive and industrial applications, this lightweight gas container offers excellent performance, durability, and compliance with international safety standards.
Key Features
- High-Pressure Storage: With a pressure capacity of up to 250 bar, our CNG cylinder ensures maximum gas storage efficiency.
- Lightweight Design: Made from high-strength materials, this cylinder is easy to handle and install, reducing the overall weight on vehicles.
- Durability: Built to withstand harsh conditions, it features corrosion-resistant materials for long-lasting performance.
- Safety Assurance: Equipped with safety valves and burst discs to prevent over-pressurization, ensuring user safety.
- Standards Compliance: Manufactured according to ISO, DOT, and ECE R110 standards for reliable performance and safety.
Advantages
- Efficient Fuel Transport: Provides reliable storage for compressed natural gas, ideal for use in vehicles and industrial equipment.
- Lower Emissions: CNG is a cleaner alternative to conventional fuels, helping reduce carbon emissions and environmental impact.
- Cost-Effective: With a long service life and low maintenance requirements, our CNG cylinder offers an economical solution for fuel storage.
Product Description
Technical Specifications
Type | Diameter (mm) | Volume (L) | Length (without valve) (mm) | Service pressure (MPa) | Weight (kg) | Service pressure (MPa) |
CNG2-406-80-20 | 406 | 80 | 808 | 20 | 64.6 | 20 |
CNG2-406-85-20 | 85 | 850 | 67.7 | |||
CNG2-406-90-20 | 90 | 891 | 70.9 | |||
CNG2-406-95-20 | 95 | 933 | 74.0 | |||
CNG2-406-100-20 | 100 | 974 | 76.6 | |||
CNG2-406-110-20 | 110 | 1057 | 82.8 | |||
CNG2-406-120-20 | 120 | 1140 | 89.1 | |||
CNG2-406-130-20 | 130 | 1223 | 95.3 | |||
CNG2-406-140-20 | 140 | 1306 | 101.6 | |||
CNG2-406-150-20 | 150 | 1389 | 107.9 | |||
CNG2-406-160-20 | 160 | 1472 | 114.8 | |||
CNG2-406-170-20 | 170 | 1555 | 121.1 | |||
CNG2-406-180-20 | 180 | 1638 | 127.4 | |||
CNG2-406-190-20 | 190 | 1721 | 133.6 | |||
CNG2-406-200-20 | 200 | 1804 | 139.2 | |||
CNG2-406-210-20 | 210 | 1887 | 145.4 |
Support and Warranty
Ourhigh-pressure CNG cylinders come with comprehensive support and a one-year warranty, ensuring reliable and trouble-free operation. We also provide technical assistance and guidance for installation and maintenance.
FAQ
- What applications are suitable for this CNG cylinder?
Our CNG cylinders are ideal for automotive use, industrial equipment, and home refueling stations. - Can I request custom specifications?
Yes, we offer customization options to meet specific size, pressure, and material requirements. - What safety features are included?
The cylinder is equipped with safety valves, burst discs, and is built with high-strength materials to withstand high pressures.
Call to Action
Get in touch with us for more information or to request a customized quote for our lightweight gas containers. Our team is ready to assist you with all your CNG storage needs.
